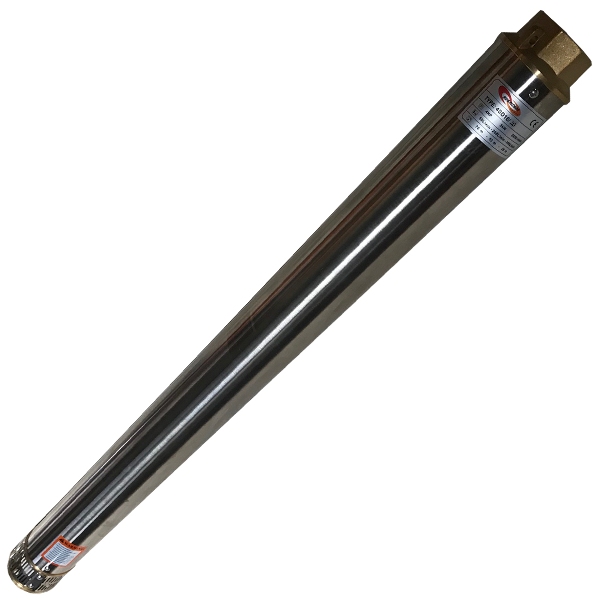

4SD16/20 Borehole Submersible Pump End Only 5.5KW

The Hurricane 4SD16/20 borehole submersible pump end requires a 5.5Kw submersible motor to drive it and is capable of delivering up to 50L/min at a depth of 116m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Three Phase : 380V – 415V 5.5KW 7.5HP / 50Hz Equip with either a standard (manual) or an automatic control box 5.5KW 7.5HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 5.5KW Power : 7.5HP Pump Diameter : 100mm
